Membrane-DFB laser

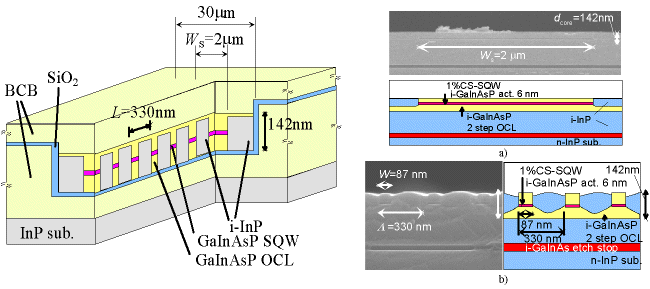

　　　　　Fig. 1 Schematic structure and cross sectional SEM view
　

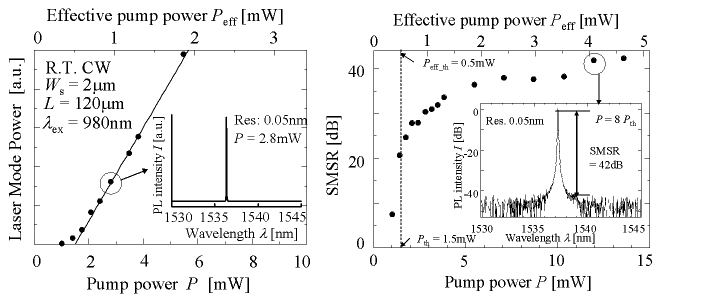

　　Fig. 2 Light output characteristic and SMSR
　

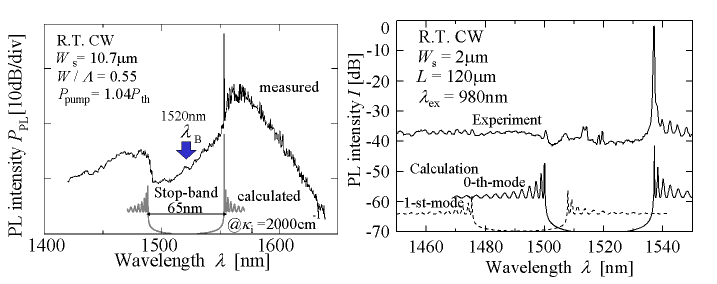

Fig. 3 Spectra
left figure: Membrane DFB laser
right figure: Membrane BH-DFB laser 　

　

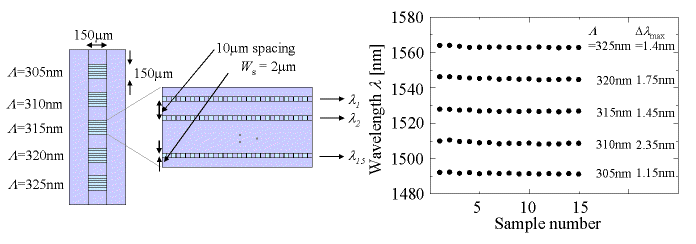

Fig. 4 Membrane BH-DFB laser arrays
left figure: Layout
right figure: Lasing wavelength controllability
　
Ultralow threshold current operation of semiconductor lasers would be indispensable for parallel optical data transmissions and optical interconnections. In order to realize them, several types of membrane-based semiconductor lasers, for example microdisk lasers and 2-D photonic crystal lasers, have been investigated because of their advantage of a large optical confinement factor to the active region due to a large refractive index difference.

Novel semiconductor laser structure, that is, membrane laser which has the Benzocyclobutene (BCB) cladding layers, enables to increase optical confinement into active layer due to a large refractive index difference between active layer and cladding layers. A room temperature continuous wave operation of membrane DFB laser consisting of deeply etched single-quantum-well wire-like active regions was demonstrated for the first time under optical pumping. A threshold power of 38mW was obtained for 10.7µm-wide and 40µm-long device. From spontaneous emission spectrum, a large stop-band width of 65nm and a low equivalent refractive index of 2.30, which are peculiar to a thin membrane waveguide structure, were observed.


In order to realize single mode and low threshold operation of 1.5µm-wavelength GaInAsP/InP membrane DFB laser, buried heterostructure (BH) was innovated by slightly changing the fabrication process. A threshold pump power of 1.5mW and a sub-mode suppression-ratio of 42dB were obtained for a 142nm-thick semiconductor membrane core layer with a cavity length of 120µm and a stripe width of 2µm under room-temperature continuous wave optical pumping. The corresponding threshold for current injection was roughly estimated to be 27µA.

High optical confinement and high index coupling in 1.55 µm-wavelength GaInAsP/InP membrane buried heterostructure distributed feedback (BH-DFB) lasers consisting of deeply etched single-quantum-well wire-like active regions were demonstrated under room-temperature (RT) continuous-wave (CW) optical pumping. We have realized membrane BH-DFB laser arrays by arranging the laser cavities (10 µm spaced 15 elements with 5 different grating periods). A total wavelength span of 72 nm was achieved with a small lasing wavelength fluctuation of up to +-1.2 nm at RT-CW condition under optical pumping. From this value, membrane thickness fluctuation was estimated to be +-0.4 nm. Threshold pump power of 3.4 mW and SMSR of 45 dB were achieved in a typical device.
　
