研究内容
Membrane-DFB laser
A high index contrast (HIC) waveguide structure which enables ultra-small and highly integrated optical circuits is very attractive. The reflactive index difference between semiconductor core and low index polymer cladding layer is about 40%, which enhanced the optical field in its core layer compared with that of conventional double hetero structures. A semiconductor membrane laser which composed of thin (150nm) core and polymer claddings, shows 3 times higher optical confinement factor due to the HIC effect.

Fig. 1 Comparison between conventional DH and membrane structure
　

@Low threshold operation under optically pumped condition

　 By utilizing the high optical confinement structure, very low threshold operations of semiconductor lasers are theoretically expected. With this polymer (Insulator) cladding structure, however, it is very difficult to inject carriers to the core layers, while conventional injection type laser has p-type and n-type semiconductor layers as its upper and lower claddings. In addition, these layers are prepared by crystal growth technique in which lattice-matched material systems are required. We try to design and test optically pumped devices to examine the high optical confinement effect, then reported low threshold single-mode operation as shown fig.2 and 3.

Fig. 2 Schematic structure and cross sectional SEM view

　

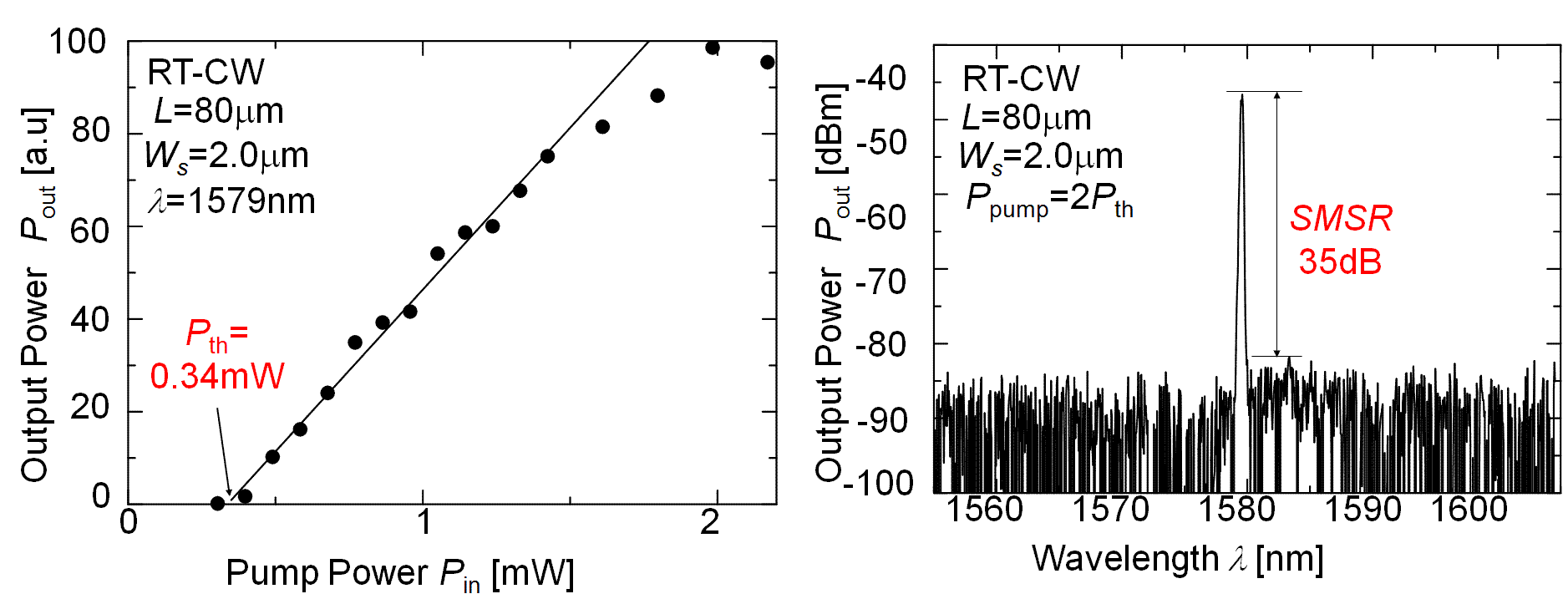

Fig.3 Light output characteristic and a lasing spectrum
　

AInjection type membrane laser

One of most important project is realization of injection type membrane lasers. A very low threshold operation of the optically pumped membrane DFB laser has been obtained. But an external light source is required in this system, which is not preferable for the device integration. It is difficult to combine the membrane and vertical pn-junction structure as mentioned before. Then, we introduced a lateral current injection (LCI) structure to our membrane based devices.
Up to now, we have realized LCI laser on semi-insulated substrate with GaInAsP thin (400 nm) core layers including 5 quantum wells by organic metallic vapor phase epitaxy regrowth technique. Then, investigations for electrical and optical properties are currently in progress in the thin LCI structure.

Fig. 4 (Left) Schematic structure and cross sectional SEM view. (Right) Light output characteristic of LCI laser
　

BDevice integration

Not only the membrane laser, some applications for other optical functional devices are expected on membrane based platform with the realization of electrically driven laser. We study photodetector and optical modulator for integration devices.
　

CAthermal membrane laser

A temperature-insensitive light source is strongly desirable in cost effective dense wavelength-division-multiplexed systems available without temperature control. A lasing wavelength of semiconductor tends to shift to longer side. On the other hand, benzocyclobutene (BCB) cladding layer which has a negative temperature coefficient of refractive index. By controlling the thicknesses of the semiconductor core layer and BCB cladding layers, membrane lasers have possibility to realize an athermal operation.
　
